Our solid wood casement window has undergone the same evolution as the double hung window. Exacting engineered features make it one of the leading casement windows on the market today. Tested to meet our high standards, and yours. Old world rabbeted pair casements also add to the charm of this traditional window. Truly one of the best. Offered as crank out, inswing or push out (with butt hinges or friction hinges).
Standard Features for Title 24 Products:
Hardware
- Truth Entrygard® crank out hardware and sash locks in white or faux bronze (see #5 on diagram)
- Folding handles standard
- Additional finishes available
- Dual Arm operator on crank out casements 14” wide or larger
- Crank out casements over 42″ tall come with tie bars
- Crank out Rabbeted casements come with corner drive gear to eliminate sash locks at top of sash
- See Hardware page for images and additional info
Frame
- 4-9/16″ solid Douglas Fir jamb (see #1 on diagram)
- Other jamb sizes available
- Solid one piece Redwood sill (see #6 on diagram)
- Sill pans to protect against moisture intrusion (see #7 on diagram)
- Exterior trim (see #8 on diagram) available by request
Sash
- Sash is a full 1-1/2″ thick, solid VG Douglas Fir (see #3 on diagram)
- additional sash thicknesses available
- Standard layout: 2” stiles and top rail on face (does not include detail), 3-1/8” bottom rail on face (does not include detail)*
- custom layouts available
- *Standard layout on SDL units with OGEE (#24) detail: 1-13/16” stiles and top rail on face (2-5/16″ overall), 2-15/16” bottom rail on face (3-7/16″ overall)
- **IMPORTANT** Window units ordered in paint or STAIN grade Douglas Fir with SDL grids – SDL exterior grids will come as primed Accoya as our default
- Note: VG Douglas Fir STAIN grade grids are available upon request, but are subject to “No Warranty”!
Glass
- Shown on diagram (#4) in single glazed, 3/4″ insulated Solarban® 70 with Argon gas standard – other glass options available
Screens
- Aluminum screens standard with UltraVue® screen mesh
- Hidden roll screen available. Rolls down when you need it, rolls up when you don’t (certain widths and wall conditions required)

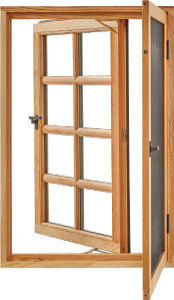

- Wood Screen available
- Bronze wire mesh available (90% Copper/10% Zinc)
- Charcoal wire mesh available
Weatherproofing
- Completely weatherstripped with bulb weatherseal to form a double weatherstripped system for added performance (see #2 on diagram)
- Available in black, white or brown
Additional Info/Options
- Solid VG Fir (paint or stain grade) standard
- Pre-priming available
- Additional species available
- Wire brushing available
- Custom lite break-ups available (marginal, craftsman, diamond, etc.)
- **IMPORTANT** Window units ordered in paint or STAIN grade Douglas Fir with SDL grids – SDL exterior grids will come as primed Accoya as our default
- Note: VG Douglas Fir STAIN grade grids are available upon request, but are subject to “No Warranty”!
- “Insert” Crank Out Casements available
- Full bound frame / 4-sided jamb, no sill
- Bottom jamb can be sloped to match your existing window sill
- “Insert” windows can be easily inserted into your existing window frame making installation a breeze!
- Stacking and mulling available
- Handing specified from the outside looking in
- Easy installation
- Crank Out Single Casement CAD Drawings
- Crank Out Rabbeted Casement CAD Drawings
- Egress Information
Standard Features for Title 24 Products:
Hardware
- Units can be Friction Hinged or Butt Hinged
- Friction hinges allow sash to open a full 90 degrees and hold sash firmly in place whether fully or partially opened
- Butt hinges allow sash to up to as much as 180 degrees
- As a standard, we use residential grade 3.5 x 3.5 Steel Plain Bearing 5/8″ Radius Corner Mortise Non-Removable Pin Hinges, 0.087 gauge (RC1842-NRP) available in several finishes
- Casement Fasteners
- Standard – large casement fastener (#66)
- Optional – small casement fastener (#066)
- Several finishes available
- 2 latches per sash on casements 42″ tall and up
- 4″ Surface Bolts (top & bottom) standard on Rabbeted Casements
- Optional Upgrade: Hoppe Stainless Steel Multipoint Locking Hardware
- See Hardware page for images and additional info
Frame
- 4-9/16″ solid Douglas Fir jamb (see #1 on diagram)
- Other jamb sizes available
- Solid one piece Redwood sill (see #6 on diagram)
- Sill pans to protect against moisture intrusion (see #7 on diagram)
- Exterior trim (see #8 on diagram) available by request
Sash
- Sash is a full 1-1/2″ thick, solid VG Douglas Fir (see #3 on diagram)
- additional sash thicknesses available
- Standard layout: 2” stiles and top rail on face (does not include detail), 3-1/8” bottom rail on face (does not include detail)*
- custom layouts available
- *Standard layout on SDL units with OGEE (#24) detail: 1-13/16” stiles and top rail on face (2-5/16″ overall), 2-15/16” bottom rail on face (3-7/16″ overall)
- **IMPORTANT** Window units ordered in paint or STAIN grade Douglas Fir with SDL grids – SDL exterior grids will come as primed Accoya as our default
- Note: VG Douglas Fir STAIN grade grids are available upon request, but are subject to “No Warranty”!
Glass
- Shown on diagram (#4) in single glazed, 3/4″ insulated Solarban® 70 with Argon gas standard
- Other glass options available
Screens
- Push out casements do not come with screens as a standard
- Hidden roll screen available. Rolls down when you need it, rolls up when you don’t (certain widths and wall conditions required)
- Inswing Wood Screen(s) with UltraVue® screen mesh available as an upgrade
- Bronze wire mesh available (90% Copper/10% Zinc)
- Charcoal wire mesh available
Weatherproofing
- Completely weatherstripped with bulb weatherseal to form a double weatherstripped system for added performance (see #2 on diagram)
- Available in black, white or brown
Additional Info/Options
- Solid VG Fir (paint or stain grade) standard
- Pre-priming available
- Additional species available
- Wire brushing available
- Custom lite break-ups available (marginal, craftsman, diamond, etc.)
- **IMPORTANT** Window units ordered in paint or STAIN grade Douglas Fir with SDL grids – SDL exterior grids will come as primed Accoya as our default
- Note: VG Douglas Fir STAIN grade grids are available upon request, but are subject to “No Warranty”!
- “Insert” Push Out Casements available
- Full bound frame / 4-sided jamb, no sill
- Bottom jamb can be sloped to match your existing window sill
- “Insert” windows can be easily inserted into your existing window frame making installation a breeze!
- Stacking and mulling available
- Handing specified from the outside looking in
- Easy installation
- Push Out Single Casement CAD Drawings
- Egress Information
Standard Features for Title 24 Products:
Hardware
- Butt hinges allow sash to up to as much as 180 degrees
- As a standard, we use residential grade 3.5 x 3.5 Steel Plain Bearing 5/8″ Radius Corner Mortise Hinges, 0.087 gauge (RC1842) available in several finishes
- We also offer IDH Parliament Hings as an upgrade
- Casement Fasteners
- Standard – large casement fastener (#66)
- Optional – small casement fastener (#066)
- Several finishes available
- 2 latches per sash on casements 42″ tall and up
- 4″ Surface Bolts (top & bottom) standard on Rabbeted Casements
- Optional Upgrade: Hoppe Stainless Steel Multipoint Locking Hardware
- See Hardware page for images and additional info
Frame
- 4-9/16″ solid Douglas Fir jamb (see #1 on diagram)
- Other jamb sizes available
- Standard interior Stool included
- Solid one piece Redwood sill (see #6 on diagram)
- Sill pans to protect against moisture intrusion (see #7 on diagram)
- Exterior trim (see #8 on diagram) available by request
Sash
- Sash is a full 1-1/2″ thick, solid VG Douglas Fir (see #3 on diagram)
- additional sash thicknesses available
- Standard layout: 2” stiles and top rail on face (does not include detail), 3-1/8” bottom rail on face (does not include detail)*
- custom layouts available
- *Standard layout on SDL units with OGEE (#24) detail: 1-13/16” stiles and top rail on face (2-5/16″ overall), 2-15/16” bottom rail on face (3-7/16″ overall)
- **IMPORTANT** Window units ordered in paint or STAIN grade Douglas Fir with SDL grids – SDL exterior grids will come as primed Accoya as our default
- Note: VG Douglas Fir STAIN grade grids are available upon request, but are subject to “No Warranty”!
Glass
- Shown on diagram (#4) in single glazed, 3/4″ insulated Solarban® 70 with Argon gas standard – other glass options available
Screens
- Aluminum screens standard with UltraVue® screen mesh
- Wood Screen available
- Bronze wire mesh available (90% Copper/10% Zinc)
- Charcoal wire mesh available
Weatherproofing
- Completely weatherstripped with bulb weatherseal to form a double weatherstripped system for added performance (see #2 on diagram)
- Available in black, white or brown
Additional Info/Options
- Solid VG Fir (paint or stain grade) standard
- Pre-priming available
- Additional species available
- Wire brushing available
- Custom lite break-ups available (marginal, craftsman, diamond, etc.)
- **IMPORTANT** Window units ordered in paint or STAIN grade Douglas Fir with SDL grids – SDL exterior grids will come as primed Accoya as our default
- Note: VG Douglas Fir STAIN grade grids are available upon request, but are subject to “No Warranty”!
- “Insert” Inswing Casements available
- Full bound frame/4-sided jamb, no sill
- Bottom jamb can be sloped to match your existing window sill
- “Insert” windows can be easily inserted into your existing window frame making installation a breeze!
- Stacking and mulling available
- Handing specified from the outside looking in
- Easy installation
- Inswing Single Casement CAD Drawings
- Inswing Casement with Fixed Sash – Stool Removal Instructions
- Egress Information
**Casements allow for maximum ventilation in small to medium size openings**
Crank Out Double Casement
Crank Out Rabbeted Casement
(No center mull post. Two sash rabbet together within one frame.)
Crank Out Rabbeted Casement CAD Drawings
Inswing Rabbeted Casement
with Parliament Hinges (shown from interior)
Inswing Single Casement CAD Drawings
Parliament Hinge
close-up on Inswing Casement

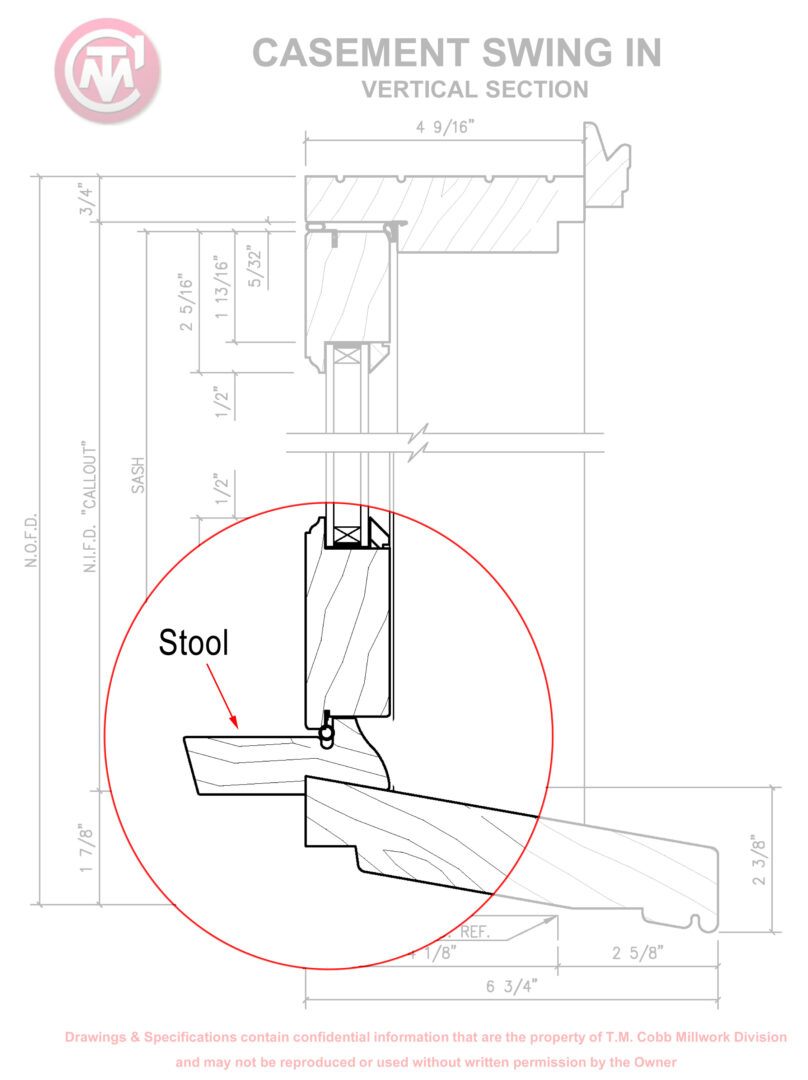

Inswing Casement Stool
