Hardware

WINDOWS

DOORS

Casement & Awning Hardware

Crank Out Hardware

We use Truth EntryGard® hardware on our Crank Out Casements and Awnings. Opening windows with the EntryGard system is smooth and easy. These operators offer removable covers as standard for easy painting/finishing. Dual Arm Operators are used on casements that are 14″ wide or larger. The patented dual arm action pushes the sash open while pulling the hinge side of the sash to the open position producing almost effortless operation. Typical operating torque is less than one foot-pound to open and close a 60 lb. sash 90 degrees.

Available Stocked Finishes:

    • White (standard)
    • Faux Bronze (standard)
    • Satin Nickel (upcharge)

Operator, Handle & Cover

Sash Lock

(Awning Operator)

Sash Lock

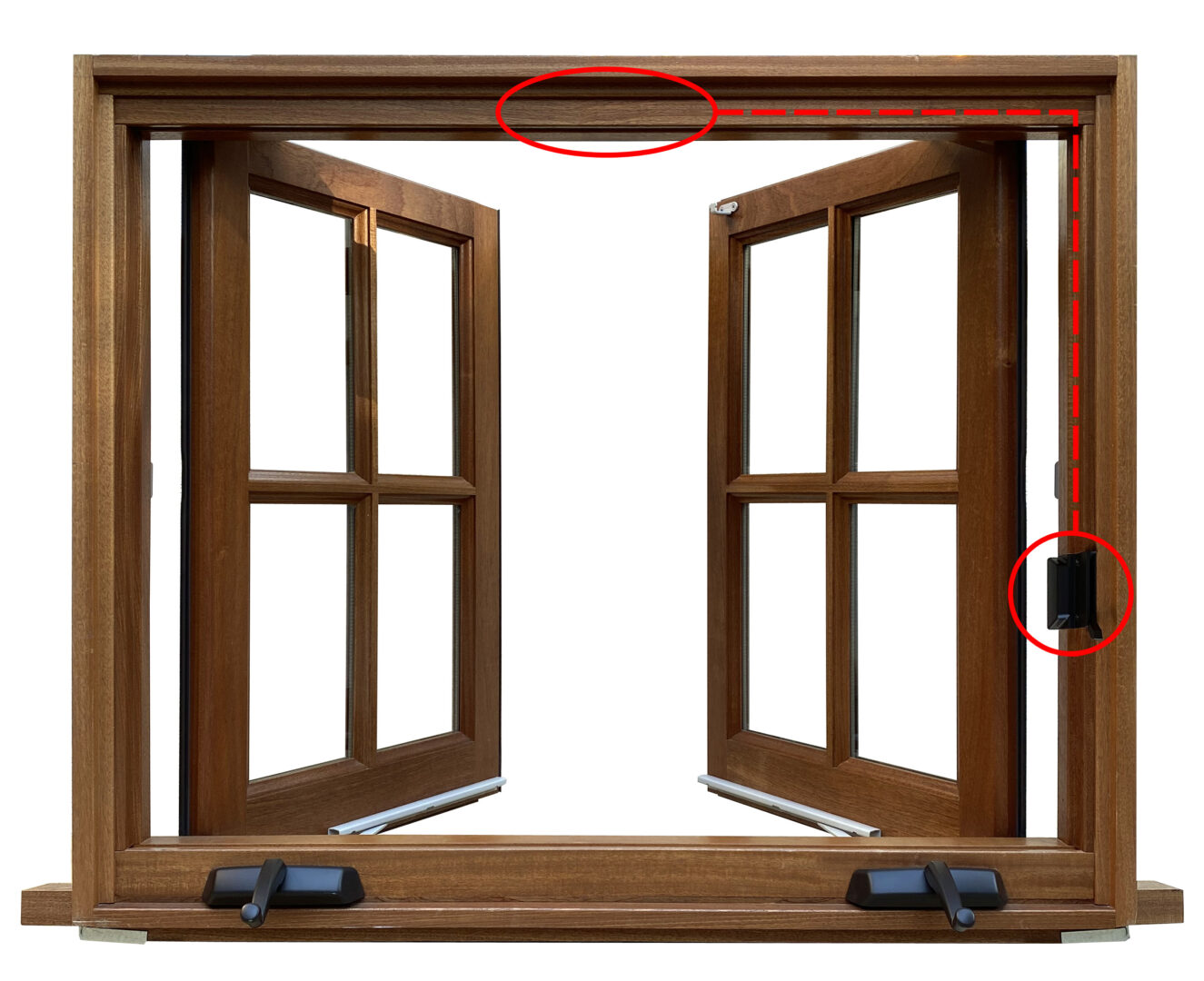

Corner Drive Gear (on Rabbeted Casements only)

Our Crank Out Rabbeted Casements come with corner drive gears to eliminate sash locks at top of sash.

Push Out Hardware

Friction Hinges

We use A.W. Anderberg friction hinges, which allow the sash to open a full 90 degrees.

Butt Hinges

We use residential grade 3.5 x 3.5 Steel Plain Bearing 5/8″ Radius Corner Mortise Non-Removable Pin Hinges, 0.087 gauge (RC1842-NRP), which allow the sash to open up as much as 180 degrees.

    • Solid Brass Hinges are available as an optional upgrade.
    • Square Corner Hinges are available as an optional upgrade.
3.5 x 3.5 RC Res. Window Hinge 1842

3.5″ x 3.5″ RC1842-NRP Hinge

Available Finishes:

Oil Rubbed Bronze (US10B)

Satin Nickel (US15)

Satin Chrome (US26D)

Bright Chrome (US26)

Bright Brass (US3)

Casement Fasterners

We use Solid Brass casement fasteners.  We offer both our standard larger casement fastener (#66) and a smaller casement fastener (#066) .

Available Finishes:

    • Bright Brass (US3)
    • Antique Brass (US5)
    • Oil Rubbed Bronze (US10B)



    • Satin Nickel (US15)
    • Bright Chrome (US26)
    • Satin Chrome (US26D)

(Standard) Large Casement Fastener #66:
   Base: 2-1/16″ high x 1-1/16″ wide
   Projection: 1-7/8″

(Optional) Small Casement Fastener #066:
   Base: 1-5/8″ high x 7/8″ wide
   Projection: 1-3/8″

Surface Bolts (Used on Rabbeted Casements only)

We use Solid Brass 4″ surface bolts on our Push Out Rabbeted Casements.

Available Finishes:

    • Bright Brass (US3)
    • Antique Brass (US5)
    • Oil Rubbed Bronze (US10B)



    • Satin Nickel (US15)
    • Bright Chrome (US26)
    • Satin Chrome (US26D)

Dimensions:
Throw: 15/16″
Projection: 3/4″
Width: 11/16″

Multipoint Locking Hardware

We offer Hoppe Stainless Steel Multipoint Locking Hardware as an optional upgrade on our Push Out Casement Windows.

Available Handle Styles:

Georgian

(shown in Oil Rubbed Bronze)

Victorian

(shown in Oil Rubbed Bronze)

Available Finishes:
      • Satin Nickel (US15)
      • Oil Rubbed Bronze (US10B)
      • Polished Brass (US3)

Inswing Hardware

Butt Hinges

We use residential grade 3.5 x 3.5 Steel Plain Bearing 5/8″ Radius Corner Mortise Hinges, 0.087 gauge (RC1842), which allow the sash to open up as much as 180 degrees.

    • Solid Brass Hinges are available as an optional upgrade.
    • Square Corner Hinges are available as an optional upgrade.
3.5 x 3.5 RC Res. Window Hinge 1842

3.5″ x 3.5″ RC1842 Hinge

Available Finishes:

Oil Rubbed Bronze (US10B)

Satin Nickel (US15)

Satin Chrome (US26D)

Bright Chrome (US26)

Bright Brass (US3)

Parliament Hinges

We also offer 2.5″ x 4″ Solid Brass IDH Parliament Hinges with Ball Finials as an upgrade.

Additional sizes available:

    • 2.5″ x 3.5″ Parliament Hinges
    • 2.5″ x 3″ Parliament Hinges

IDH 2.5″ x 4″ Parliament Hinge (upgrade) – shown in Oil Rubbed Bronze (US10B)

Available Finishes:

Oil Rubbed Bronze (US10B)

Satin Nickel (US15)

Polished Chrome (US26)

Polished Brass (US3)

Casement Fasterners

We use Solid Brass casement fasteners.  We offer both our standard larger casement fastener (#66) and a smaller casement fastener (#066).

Available Finishes:

    • Bright Brass (US3)
    • Antique Brass (US5)
    • Oil Rubbed Bronze (US10B)



    • Satin Nickel (US15)
    • Bright Chrome (US26)
    • Satin Chrome (US26D)

(Standard) Large Casement Fastener #66:
   Base: 2-1/16″ high x 1-1/16″ wide
   Projection: 1-7/8″

(Optional) Small Casement Fastener #066:
   Base: 1-5/8″ high x 7/8″ wide
   Projection: 1-3/8″

Surface Bolts (Used on Rabbeted Casements only)

We use Solid Brass 4″ surface bolts on our Push Out Rabbeted Casements.

Available Finishes:

    • Bright Brass (US3)
    • Antique Brass (US5)
    • Oil Rubbed Bronze (US10B)



    • Satin Nickel (US15)
    • Bright Chrome (US26)
    • Satin Chrome (US26D)

Dimensions:
Throw: 15/16″
Projection: 3/4″
Width: 11/16″

Multipoint Locking Hardware

We offer Hoppe Stainless Steel Multipoint Locking Hardware as an optional upgrade on our Inswing Casement Windows.

Available Handle Styles:

Georgian

(shown in Oil Rubbed Bronze)

Victorian

(shown in Oil Rubbed Bronze)

Available Finishes:
      • Satin Nickel (US15)
      • Oil Rubbed Bronze (US10B)
      • Polished Brass (US3)

Back to top

Double Hung, Tilt-Pac & Slider Hardware

Cam Lock

As a standard, we use Truth EntryGard® Cam Locks which feature a protective back plate and an internal cam which produces a .125″ pull-in with a .156″ lifting ability. When locked, meeting rails are pulled tightly together, decreasing air infiltration. EntryGard’s snap-back lock draws the cam in when handle motion is within 30 degrees of the open position. The spring action eliminates cam exposure when partially open. Made from high-pressure, corrosion-resistant, die-cast zinc. Available with or without alignment lugs. Made with the same exceptional engineering platform as EntryGard Operators.

Sash Lift/Pull

Designed to complement Truth’s Check Rail Locks, Truth Sash Lifts provide easy opening and closing of double-hung or sliding windows. With a traditional finger-pull look, Sash Lifts encourage window lifting from the bottom, putting less stress on the sash.

*Sash Lifts/Pulls are shipped loose and installed by others.

Available Stocked Finishes:
    • White (standard)
    • Faux Bronze (standard)
    • Satin Nickel (upcharge)

Cam Lock

Sash Lift/Pull (available in White or Faux Bronze only)

(Shown on Double Hung in Faux Bronze)

(Shown on Slider in White)

Sash Lift/Pull (available in White or Faux Bronze only)

(Shown on Double Hung in Faux Bronze)

(Shown on Slider in White)

Upgraded Traditional Spoon Lock

We also offer Deltana® Traditional Solid Brass Spoon Locks as an upgrade on our Double Hungs and Sliders. This authentic reproduction Bevel Sash Lock fits newer double-pane (insulated glass) windows.

Available Sizes:

Available Finishes:

Oil Rubbed Bronze (US10B)

Satin Nickel (US15)

Polished Chrome (US26)

Satin Chrome (US26D)

Polished Brass (US3)

Back to top

Gas Strut Servery Awning Hardware

Multipoint Locking Hardware

We use Hoppe Stainless Steel Multipoint Locking Hardware on our Gas Strut Servery Awning Windows.

Available Handle Styles:

Dallas – M0643/US943 Solid Brass

(shown in Satin Nickel)

Verona – M051/U30 Solid Brass

(shown in Satin Nickel)

Available Finishes:
      • Satin Nickel (US15)
      • Rustic Umber (US10B)
      • Matte Black (US19)

Satin Nickel (US15)

Rustic Umber (US10B)

Matte Black (US19)

Exterior Pull Handle

We use a 6″ Emtek Window Utility Pull Handle on the sash exterior of all of our Servery Awnings.

Available Finishes:

Satin Nickel (US15)

Oil Rubbed Bronze (US10B)

Matte Black (US19)

Gas Springs (Struts)
Our Hydraulic Gas Spring Lift System allows sash to open to 92° (Cobb Custom standard) and locks into place. Safety feature locks sash into place when in the open position, and must be pushed to release the lock before sash can be closed.
Our Hydraulic Gas Spring Lift System allows sash to open to 92° (Cobb Custom standard) and locks into place. Safety feature locks sash into place when in the open position, and must be pushed to release the lock before sash can be closed.
Butt Hinges

We use BB1279 4″ x 4″ Solid Brass Ball Bearing NRP Square Corner Hinges on our Servery Awnings.

BB1279-NRP Hinge

Available Finishes:

Satin Nickel (US15)

Oil Rubbed Bronze (US10B)

Matte Black (US19)

Back to top

Hopper Hardware

Friction Hinges (Standard)

We use A.W. Anderberg friction hinges, which allow the sash to open a full 90 degrees.

Butt Hinges (Optional)

We use 3.5 x 3.5 Steel Plain Bearing 1/4″ Radius Corner Mortise Non-Removable Pin Hinges (RC1541-NRP), which allow the sash to up to as much as 180 degrees.

    • Solid Brass Hinges are available as an optional upgrade.
    • Square Corner Hinges are available as an optional upgrade.

3.5″ x 3.5″ RC1541-NRP Hinge

Available Finishes:

Oil Rubbed Bronze (US10B)

Satin Nickel (US15)

Satin Chrome (US26D)

Bright Chrome (US26)

Bright Brass (US3)

Transom Catches

We use Solid Brass transom catches.

Available Finishes:

    • Bright Brass (US3)
    • Antique Brass (US5)
    • Oil Rubbed Bronze (US10B)



    • Satin Nickel (US15)
    • Bright Chrome (US26)
    • Satin Chrome (US26D)

Back to top

Swinging Door Hardware

Butt Hinges

We use 1279 4″ x 4″ Steel Plain Bearing 1/4″ Radius Corner Mortise Hinges on our swinging doors.

    • Solid Brass Hinges are available as an optional upgrade.
    • Square Corner Hinges are available as an optional upgrade.

1/4″ RC1279 Hinge

Available Finishes:

Oil Rubbed Bronze (US10B)

Satin Nickel (US15)

Satin Chrome (US26D)

Bright Chrome (US26)

Bright Brass (US3)

Multipoint Locksets

We offer Hoppe HLS® 9000 Multipoint Swinging Hardware as an upgrade on Swinging Doors up to 8 ft. tall. Coming soon… Shoot bolt hook and tongue multipoint hardware for doors over 8 ft up to 10 ft.

Available Handle Styles:
Dallas - Satin Nickel US15
Dallas Handle

M1643/2161N Solid Brass

(shown in Satin Nickel)

Verona - Satin Nickel US15
Verona Handle

M151/216N Solid Brass

(shown in Satin Nickel)

Available Finishes:
      • Satin Nickel (US15)
      • Rustic Umber (US10B)
      • Matte Black (US19)

(Hover over image to see Verona Handle style)

Dallas - Satin Nickel US15
Satin Nickel (US15)
Dallas Handle
Verona - Satin Nickel US15
Satin Nickel (US15)
Verona Handle
Dallas - Rustic Umber US10B
Rustic Umber (US10B)
Dallas Handle
Verona - Rustic Umber US10B
Rustic Umber (US10B)
Verona Handle
Dallas - Matte Black (US19)
Matte Black (US19)
Dallas Handle
Verona - Matte Black US19
Matte Black (US19)
Verona Handle
Mutlipoint Hardware Features All Stainless Steel

Corrosion occurs for a variety of reasons – pollution in the air, a scratched surface or the presence or moisture or salt water. Stainless steel provides excellent resistance to corrosion and defends against the constant attack of weather and time. Other sliding door locks are made from mild steel or a mix of mild steel and stainless steel. HLS® 9000 Multipoint Sliding Door and Swinging Door Hardware features all-stainless steel construction to ensure lasting performance and appearance over time.

Back to top

Sliding Door Hardware

Multipoint Locksets

We use Hoppe HLS® 9000 Multipoint Sliding Hardware on our Sliding Doors.

HLS 9000 Features & Benefits:
      • Two point locking system provides multiple points of contact with the jamb and allows for optimum locking point contact with the jamb to assure passing the most stringent forced entry testing
      • Stainless steel construction for superior corrosion resistance
      • 1100 pounds locked load resistance and Grade 40 performance per ASTM F842-97
      • Mishandling device prevents retractable hooks from accidentally extending avoiding damage to the hardware, door or frame
      • Retractable hook-style locking points create a clean look on the door and jamb when open
      • Manual lock operation eliminates inadvertent locking of the door
      • Limited Lifetime Mechanical Warranty
      • Available in 30 mm and 35 mm backset for standard system
      • Faceplate with radius at top and bottom available for simplified door edge preparation
      • Adjustable strikes provide flexibilty for installation and help solve the problem of door panel movement or settling of the house
Sliding Door Trim Features & Benefits
      • Solid brass Verona style (M151VK/2170N) handle and backplate
      • Single design theme means corresponding finishes and styles for both sliding and hinged doors
      • Spring assist for easy locking of the system
      • 90º turn lock for easy operation and a clear, visual indicator of locked/unlocked position
      • Matching dummy trim available for passive panel door
      • Resista® finishes have a Limited Lifetime Finish Warranty.

Verona Style Handle Set (M515VK/2170N)

Available Finishes:
      • Satin Nickel (US15)
      • Rustic Umber (US10B)
      • Matte Black (US19)

Satin Nickel (US15)

Rustic Umber (US10B)

Matte Black (US19)

Mutlipoint Hardware Features All Stainless Steel

Corrosion occurs for a variety of reasons – pollution in the air, a scratched surface or the presence or moisture or salt water. Stainless steel provides excellent resistance to corrosion and defends against the constant attack of weather and time. Other sliding door locks are made from mild steel or a mix of mild steel and stainless steel. HLS® 9000 Multipoint Sliding Door and Swinging Door Hardware features all-stainless steel construction to ensure lasting performance and appearance over time.

Back to top

French Combo Door Hardware

Friction Hinges

We use A.W. Anderberg friction hinges on our Combo Sash, which allow the sash to open a full 90 degrees.

Casement Fasterners

We use two Solid Brass casement fasteners (#66) on our Combo Sash.

Available Finishes:

    • Bright Brass (US3)
    • Antique Brass (US5)
    • Oil Rubbed Bronze (US10B)



    • Satin Nickel (US15)
    • Bright Chrome (US26)
    • Satin Chrome (US26D)

(Standard) Large Casement Fastener #66:
   Base: 2-1/16″ high x 1-1/16″ wide
   Projection: 1-7/8″

Butt Hinges

We use 1279 4″ x 4″ Steel Plain Bearing 1/4″ Radius Corner Mortise Hinges on our French Combo doors.

    • Solid Brass Hinges are available as an optional upgrade.
    • Square Corner Hinges are available as an optional upgrade.

1/4″ RC1279 Hinge

Available Finishes:

Oil Rubbed Bronze (US10B)

Satin Nickel (US15)

Satin Chrome (US26D)

Bright Chrome (US26)

Bright Brass (US3)

Multipoint Locksets

We offer Hoppe HLS® 9000 Multipoint Swinging Hardware as an upgrade on French Combo Doors up to 8 ft. tall. Coming soon… Shoot bolt hook and tongue multipoint hardware for doors over 8ft up to 10 ft.

Available Handle Styles:
Dallas - Satin Nickel US15
Dallas Handle

M1643/2161N Solid Brass

(shown in Satin Nickel)

Verona - Satin Nickel US15
Verona Handle

M151/216N Solid Brass

(shown in Satin Nickel)

Available Finishes:
      • Satin Nickel (US15)
      • Rustic Umber (US10B)
      • Matte Black (US19)

(Hover over image to see Verona Handle style)

Dallas - Satin Nickel US15
Satin Nickel (US15)
Dallas Handle
Verona - Satin Nickel US15
Satin Nickel (US15)
Verona Handle
Dallas - Rustic Umber US10B
Rustic Umber (US10B)
Dallas Handle
Verona - Rustic Umber US10B
Rustic Umber (US10B)
Verona Handle
Dallas - Matte Black (US19)
Matte Black (US19)
Dallas Handle
Verona - Matte Black US19
Matte Black (US19)
Verona Handle
Mutlipoint Hardware Features All Stainless Steel

Corrosion occurs for a variety of reasons – pollution in the air, a scratched surface or the presence or moisture or salt water. Stainless steel provides excellent resistance to corrosion and defends against the constant attack of weather and time. Other sliding door locks are made from mild steel or a mix of mild steel and stainless steel. HLS® 9000 Multipoint Sliding Door and Swinging Door Hardware features all-stainless steel construction to ensure lasting performance and appearance over time.

Back to top

Pivot Door Hardware

We use pivot hinges made by Dorma®.

Types of Pivot Hinges Offered:
      • CP440
        • Door weight limit of 440 lbs
        • 4 ft. max. overhang from pivot point
        • Single or double action
        • Integrated into sill
      • CP660
        • Door weight limit of 660 lbs
        • 4 ft. max. overhang from pivot point
        • Single or double action
        • Subfloor installation
      • CP1000
        • Door weight limit of 1000 lbs
        • 6 ft. max. overhang from pivot point
        • Single or double action
        • Subfloor installation
      • BTS 80 Series
        • A Self-Closing Hydraulic controlled floor pivot
        • Door weight limit of 660 lbs
        • 4 ft. max. overhang from pivot point
        • Subfloor installation
        • Self-closing single or double action

Dorma CP440 Pivot Hardware  ↑↓

Dorma CP1000 Pivot Hardware  ↑↓

Dorma CP660 Pivot Hardware  ↑↓

Dorma BTS 80 Pivot Hardware  ↑↓

Back to top
