Online Product Knowledge

Windows:

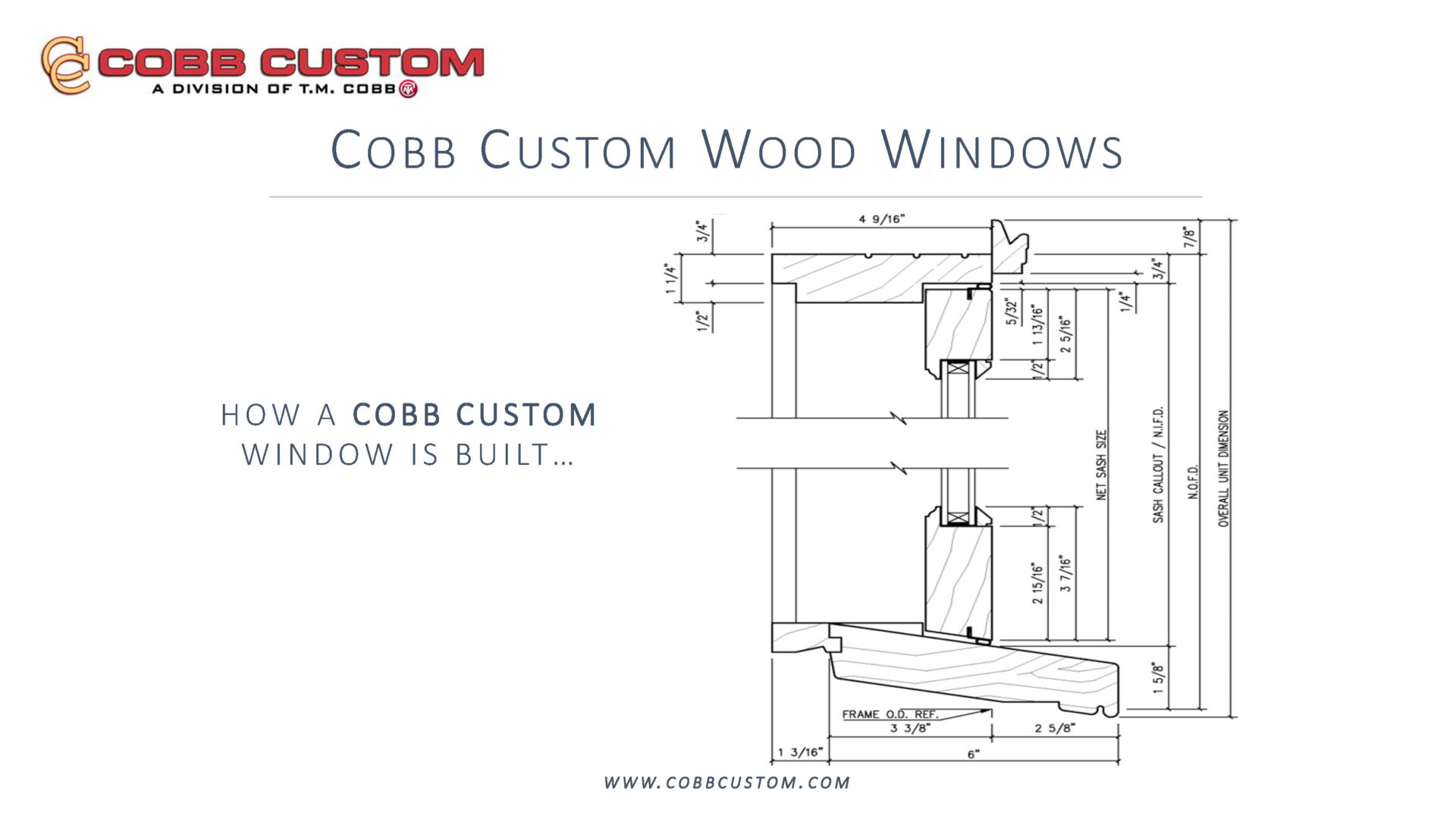

Title slide reading Cobb Custom Wood Windows, How a Cobb Custom Window is Built, with a wood window cross-section drawing.

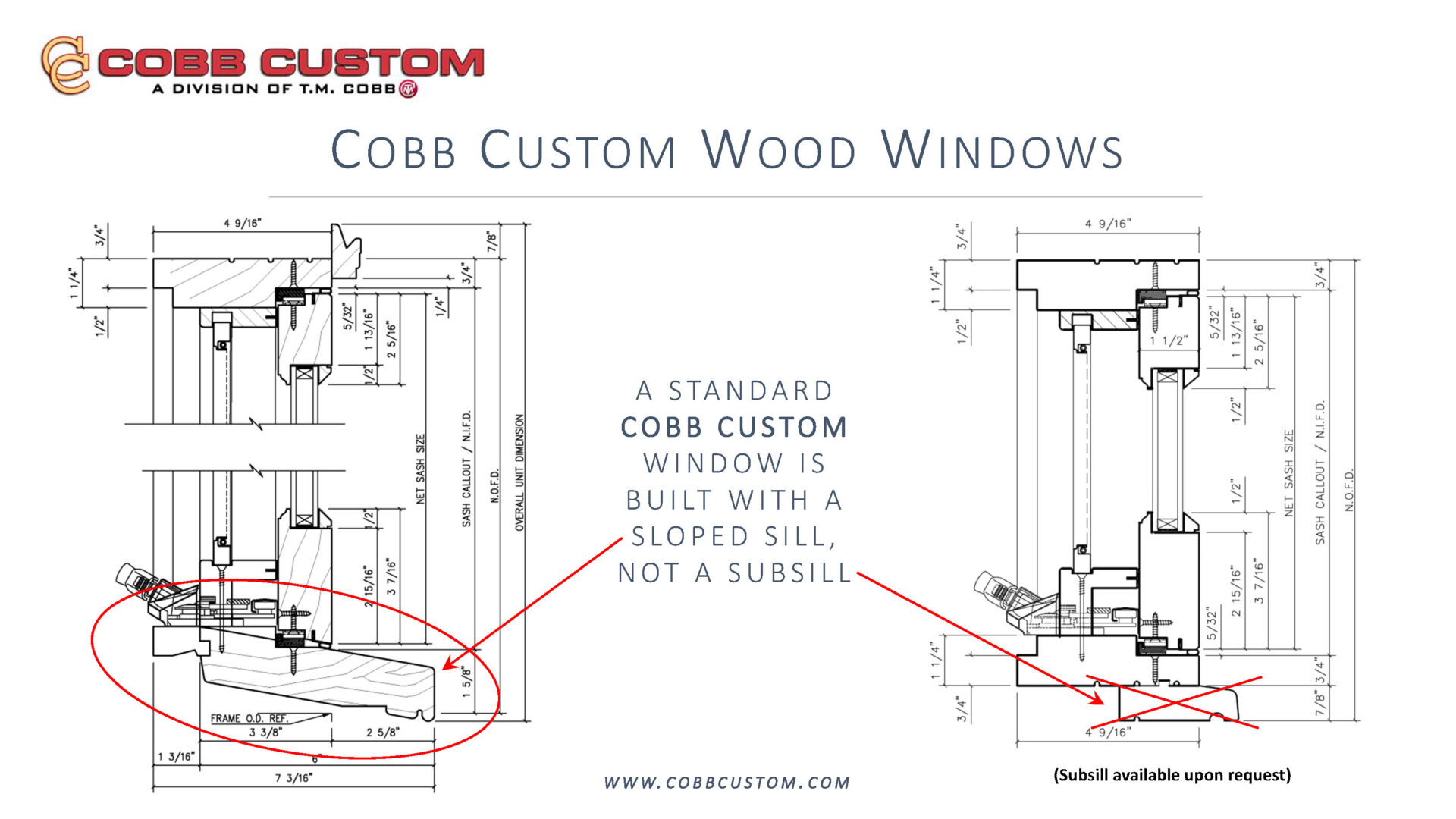

Diagram showing a standard Cobb Custom window is built with a 10-degree sloped sill, not a subsill (subsill available on request).
Cobb Custom Wood Windows slide stating We Are Title 24 Tested, with the Title 24 Tested badge and NFRC National Fenestration Rating Council logo.
Cobb Custom Wood Windows slide titled Service Before, During and After the Sale, with a 3D figure carrying a wrench and toolbox.

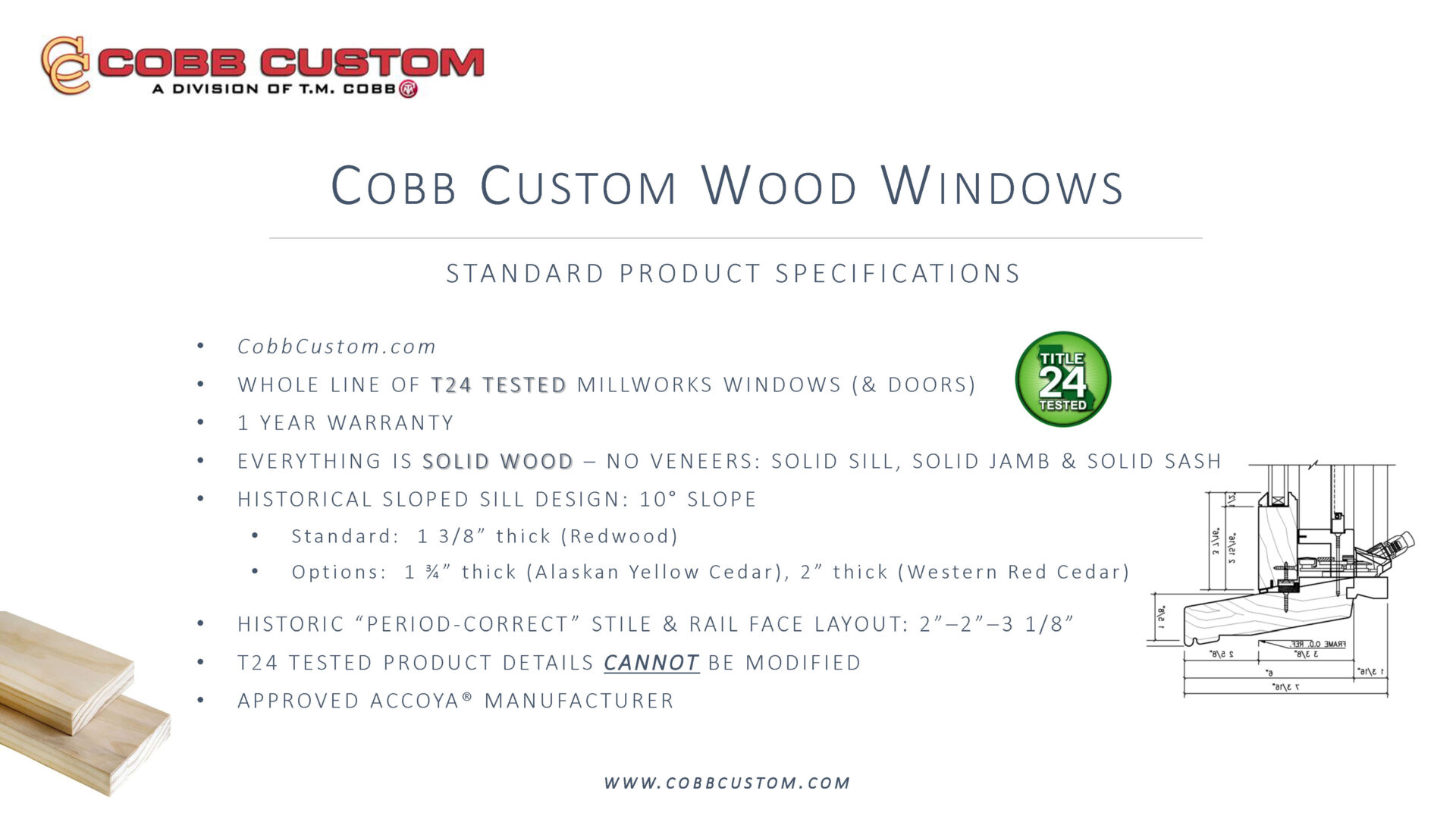

Cobb Custom window standard specs: Title 24 tested, 1-year warranty, all solid wood sill, jamb and sash, historical 10-degree sloped sill in Redwood, Alaskan Yellow Cedar or Western Red Cedar.
Cobb Custom sloped sill options: cross-sections of a standard 1 3/8-inch thick sill nose and an optional 1 3/4-inch thick sill nose.
Cobb Custom window specs: historic period-correct stile and rail face layout for single glazed, Title 24 details cannot be modified, approved Accoya manufacturer, with stacked wood boards.

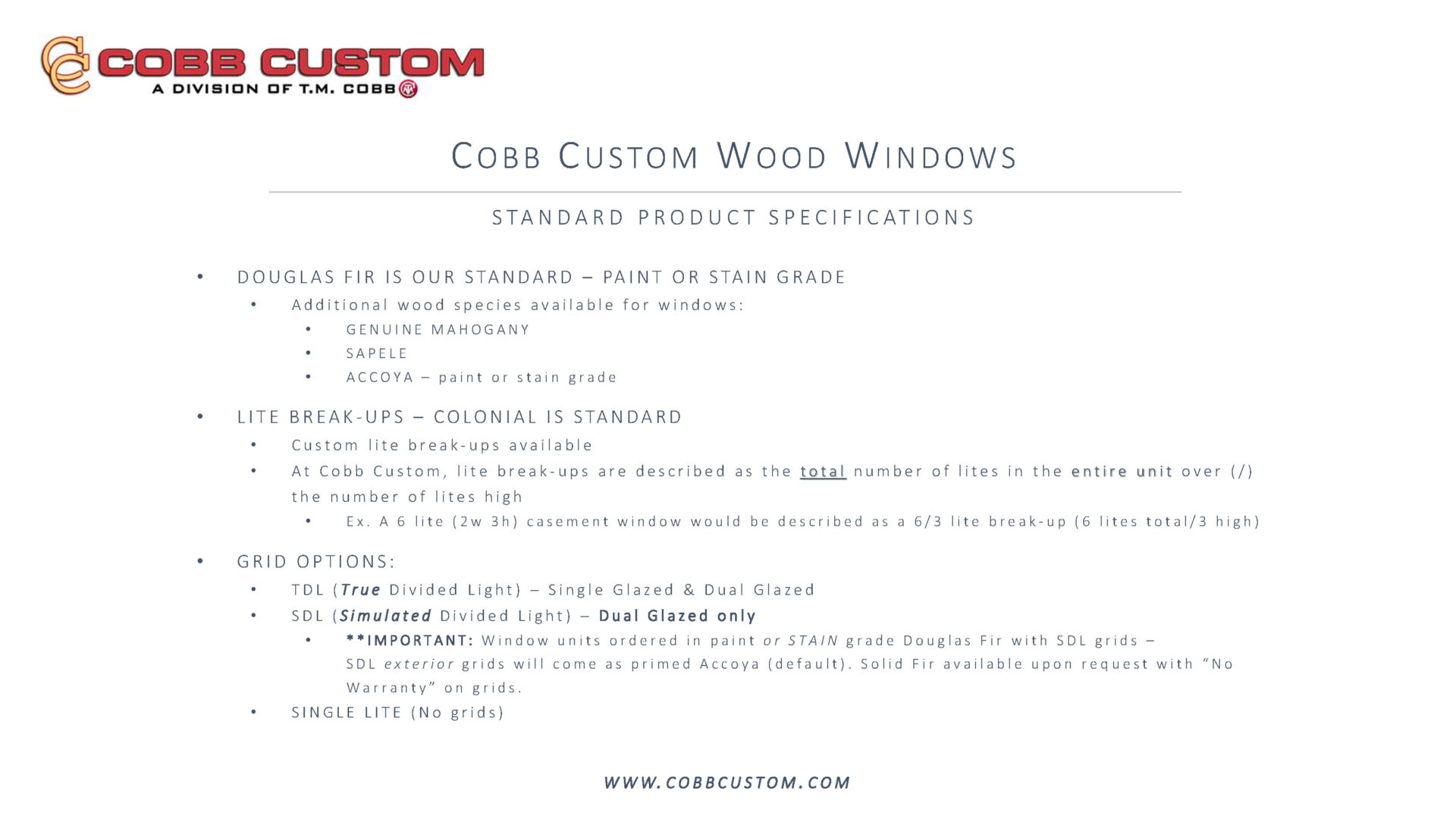

Cobb Custom window specs: Douglas Fir standard in paint or stain grade with mahogany, sapele and Accoya options, Colonial lite break-ups standard, shown with a colonial grid window.
Cobb Custom window grid options: TDL True Divided Light single and dual glazed, SDL Simulated Divided Light dual glazed only, and Single Lite with no grids.
Cobb Custom window sticking and stop profile chart showing single glazed, dual glazed and SDL muntin profile cross-sections with option numbers.

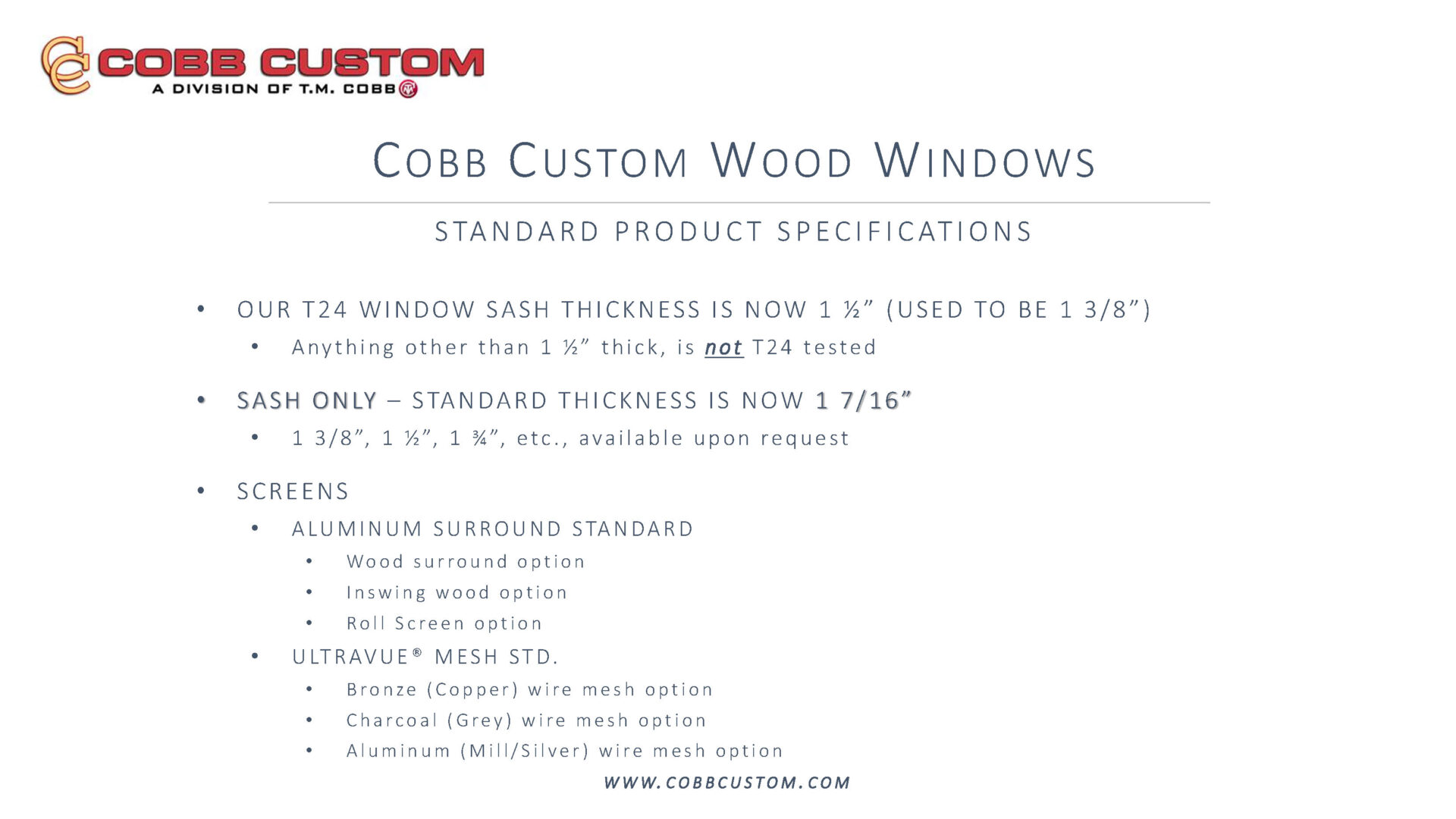

Cobb Custom window specs: Title 24 sash thickness 1 1/2 inch, sash-only 1 7/16 inch, aluminum screen surround standard in white, bronze, black or mill with UltraVue mesh.

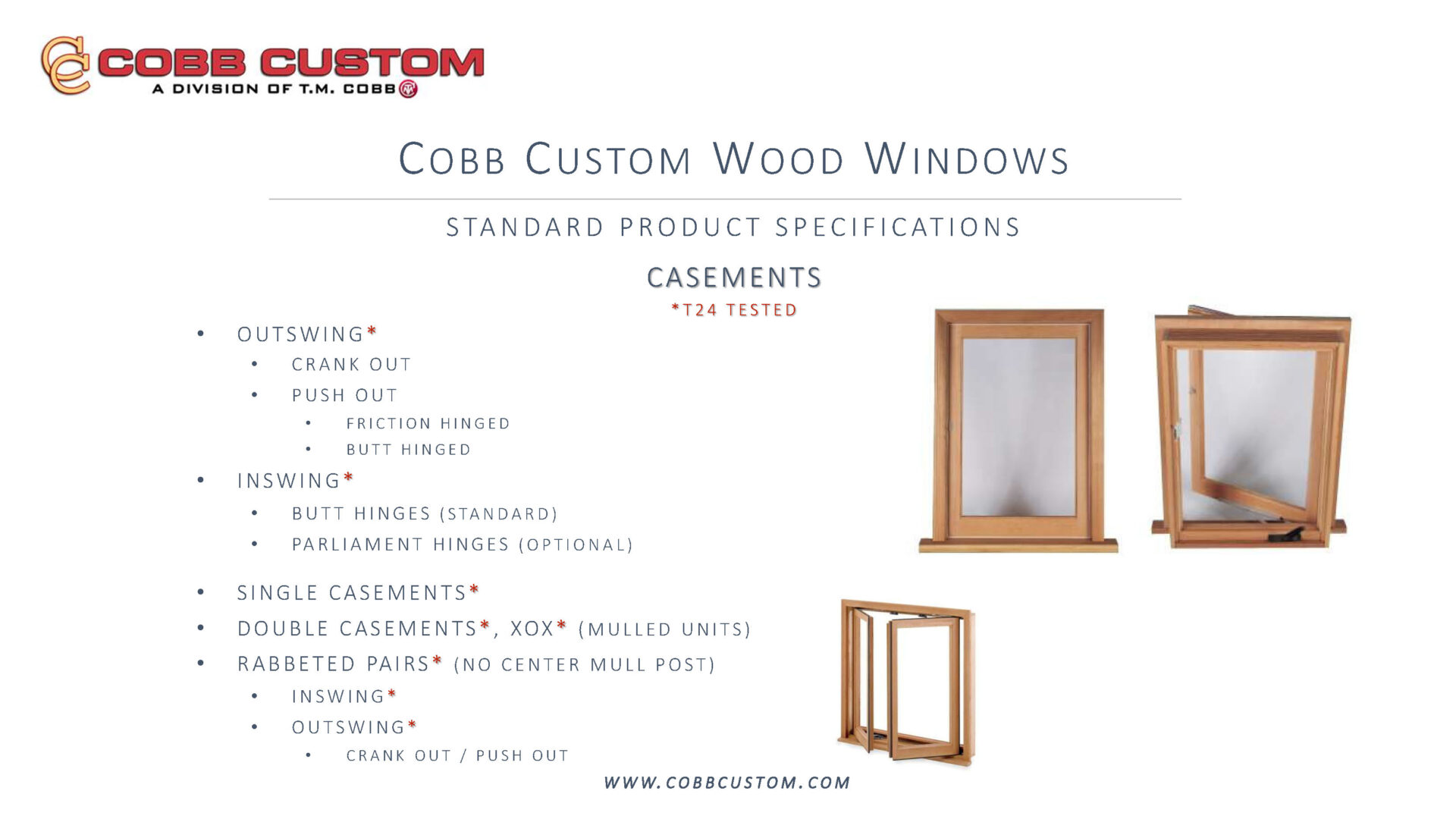

Cobb Custom casement windows (Title 24 tested): outswing crank-out or push-out, inswing butt or parliament hinges, single, double and rabbeted pairs, with casement window photos.

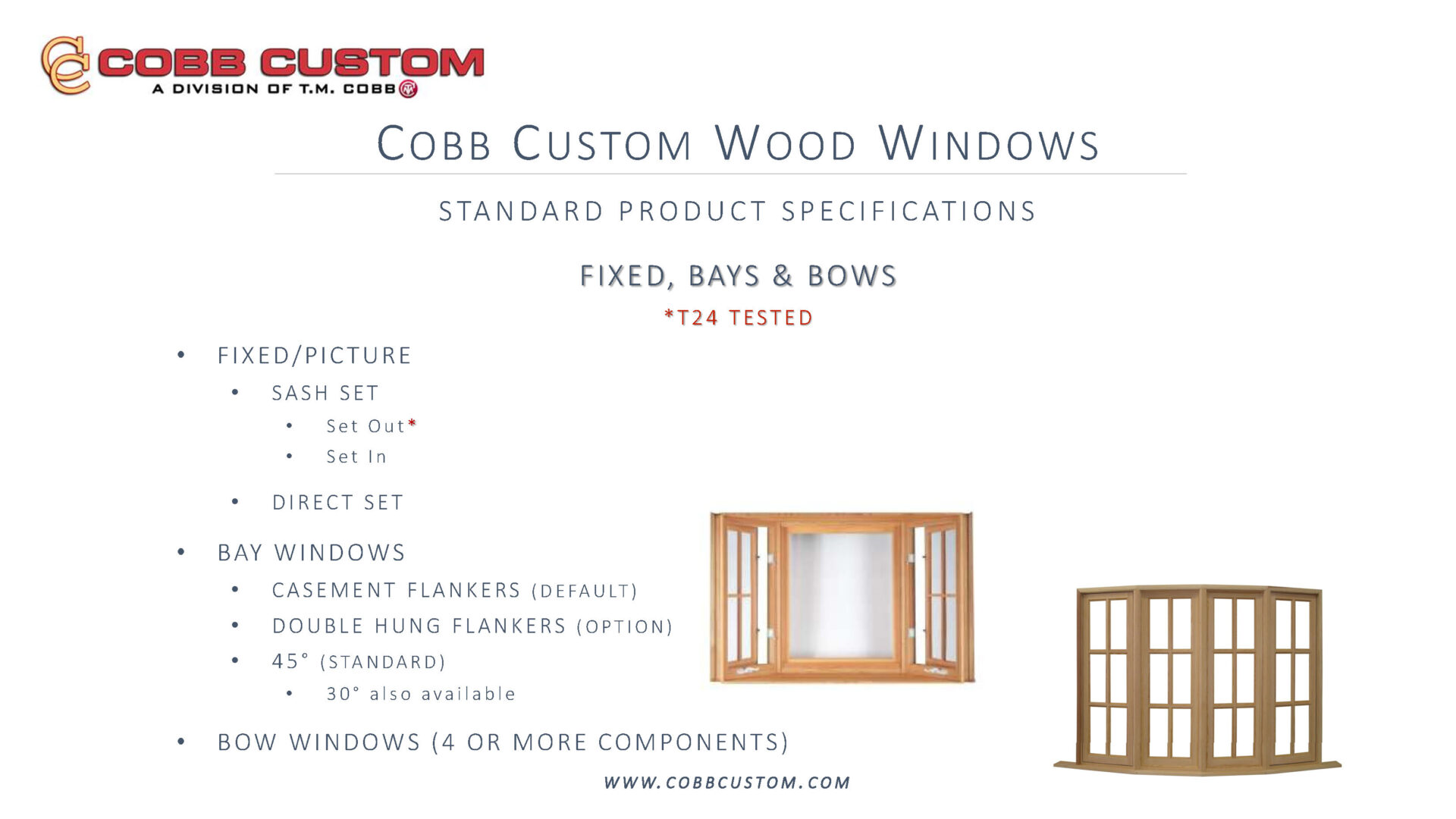

Cobb Custom fixed picture windows (Title 24 tested): sash set (set out or set in) and direct set glass and frame only, with a wood picture window photo.
Cobb Custom double hung windows (Title 24 tested): hidden balance default, rope-and-pulley or chain-and-pulley, vinyl jambliner in white or beige with tilt-in, plus tilt packs and sash only, with window photos.

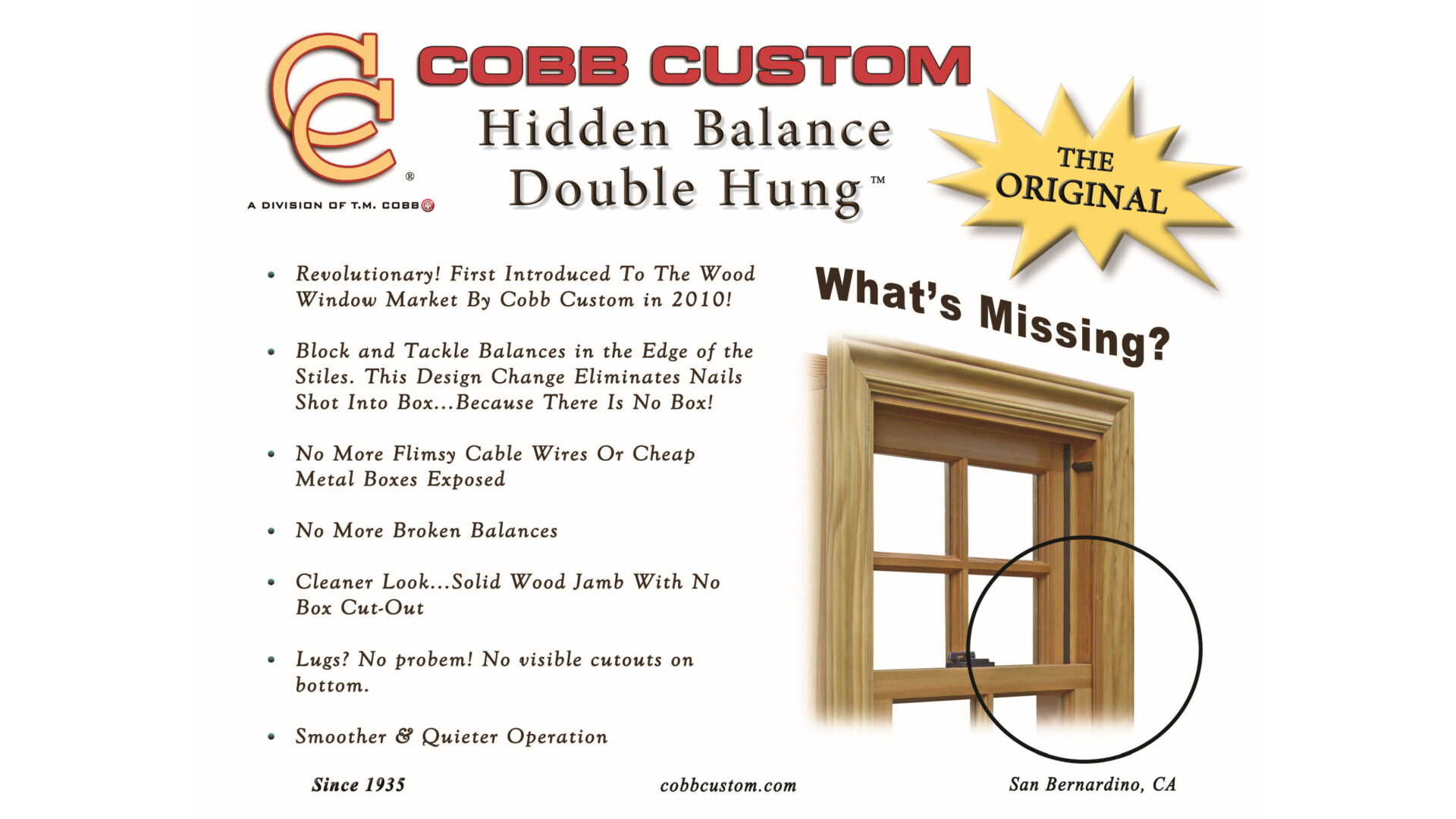

Cobb Custom Hidden Balance Double Hung branding slide, The Original, listing benefits like no balance box, cleaner solid wood jamb and smoother, quieter operation, with a window corner photo.

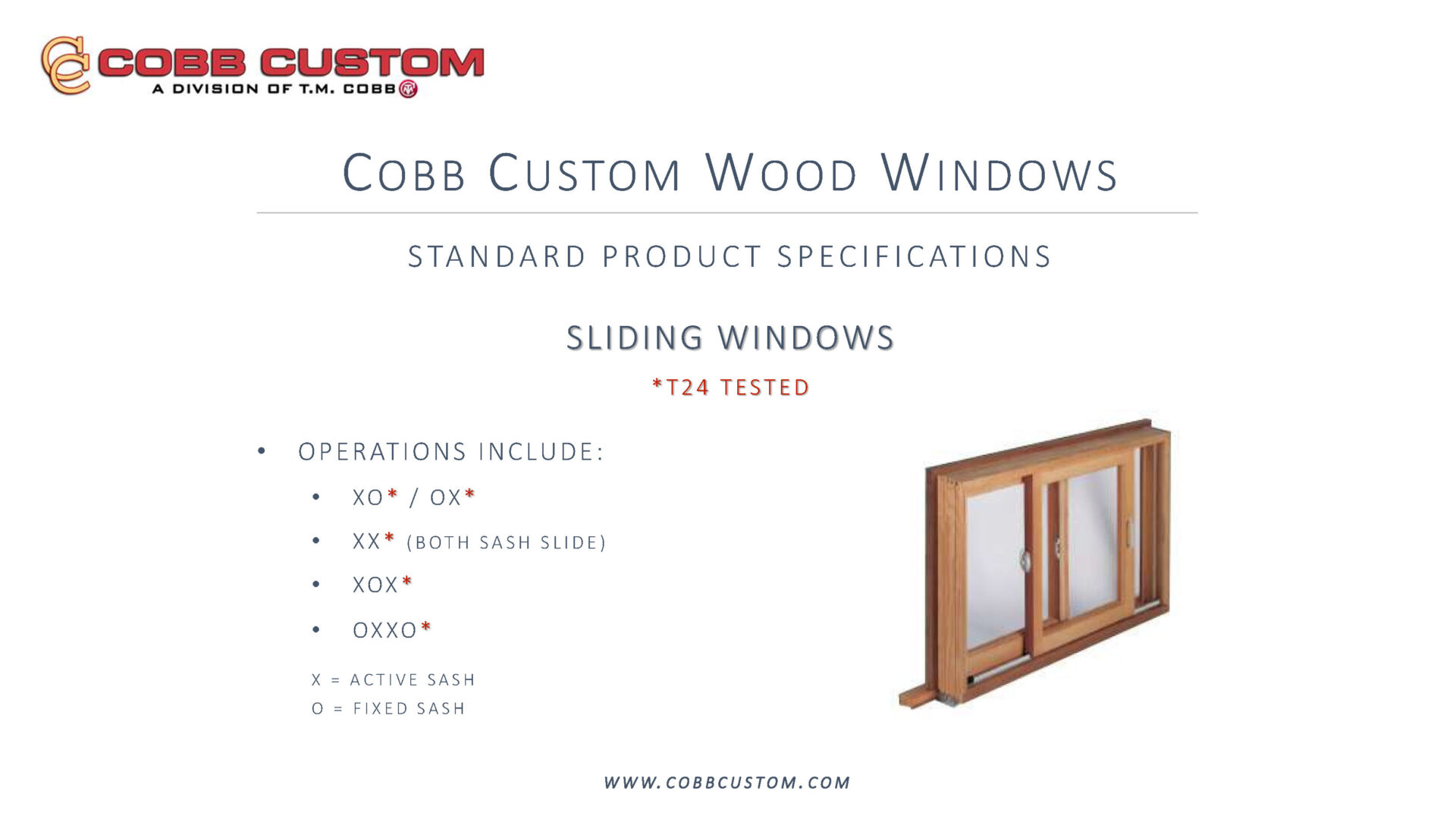

Cobb Custom sliding windows (Title 24 tested): operations XO, OX, XX both sash slide, XOX and OXXO where X is active sash and O is fixed, with a wood sliding window photo.
Cobb Custom Wood Windows product page header with logo and cedar wood window images on the right; standard specs listed left side

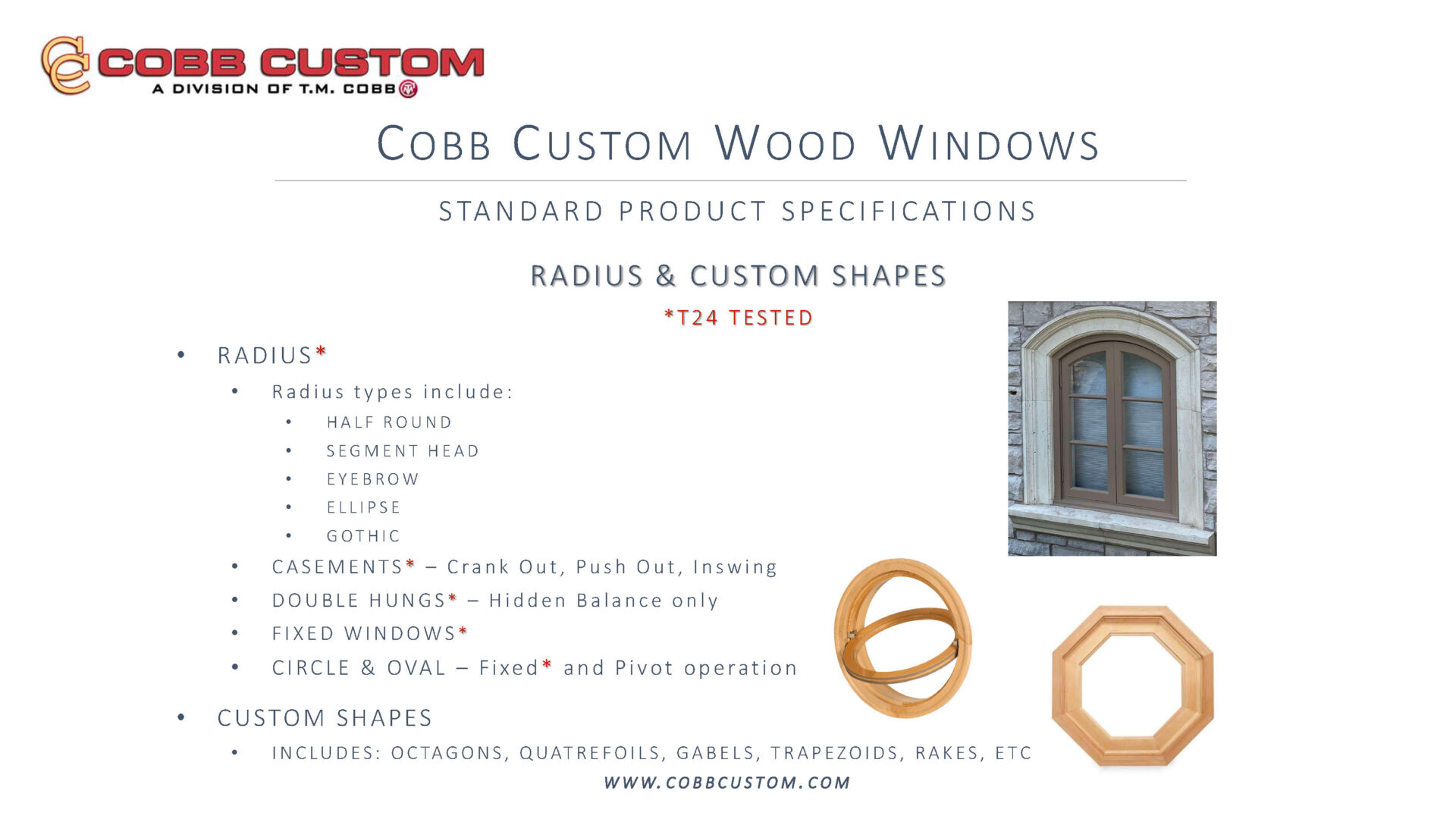

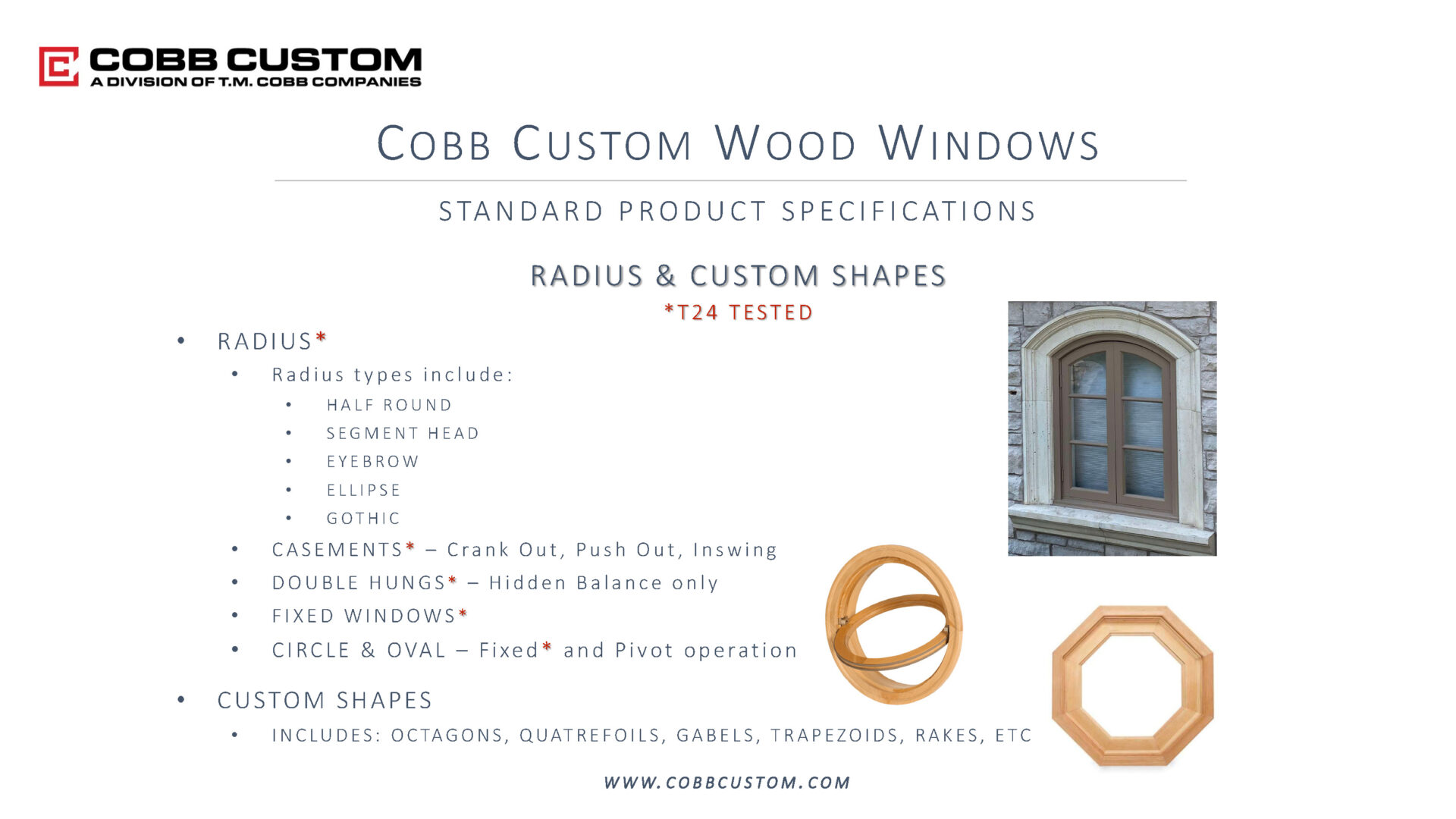

Product sheet for Cobb Custom Wood Windows featuring the company logo, main title, and a window photograph on the right with a bullet list of radius and custom shapes.

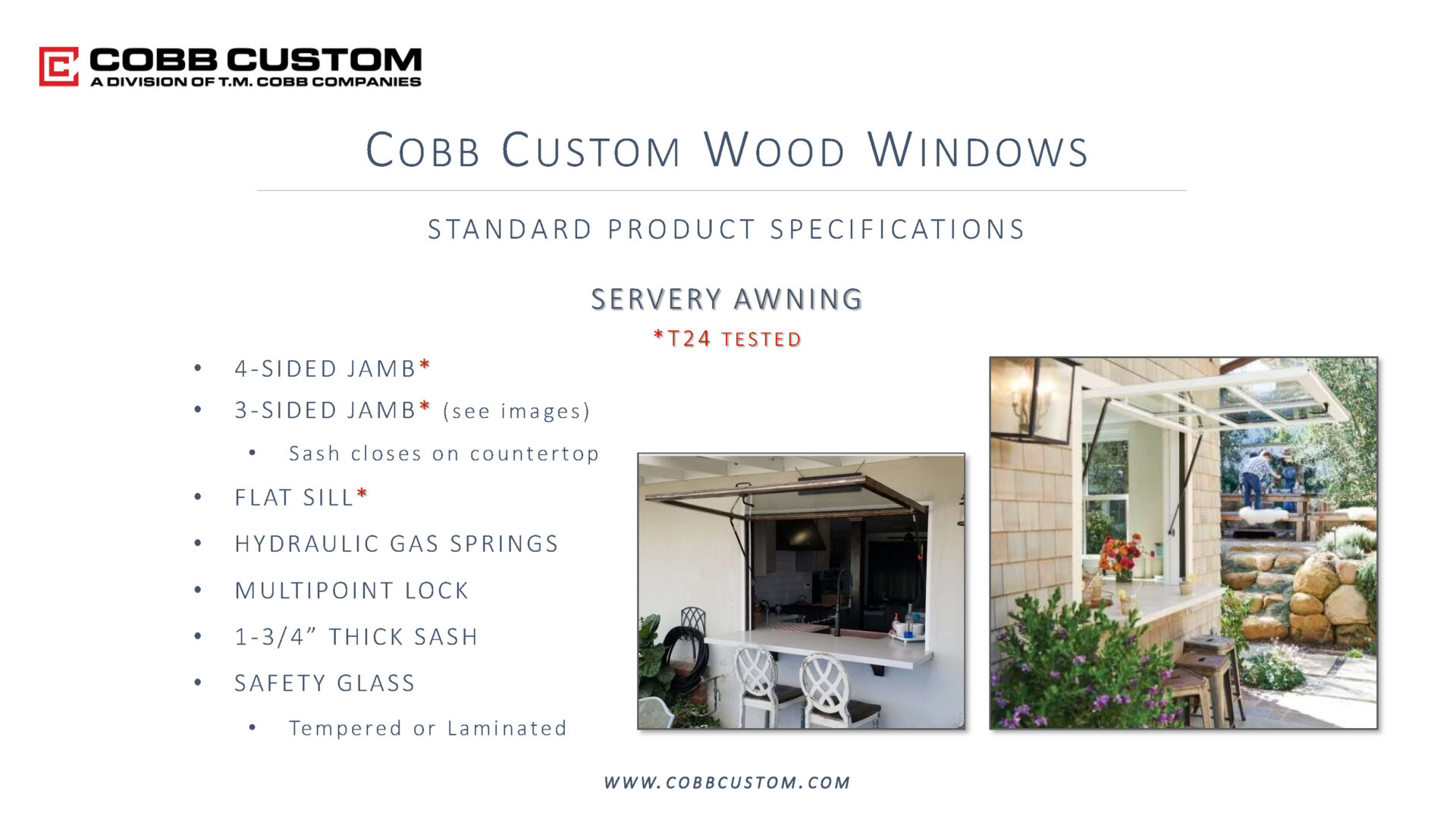

Cobb Custom Wood Windows product spec page with bullet features and two installation photos in a backyard setting.

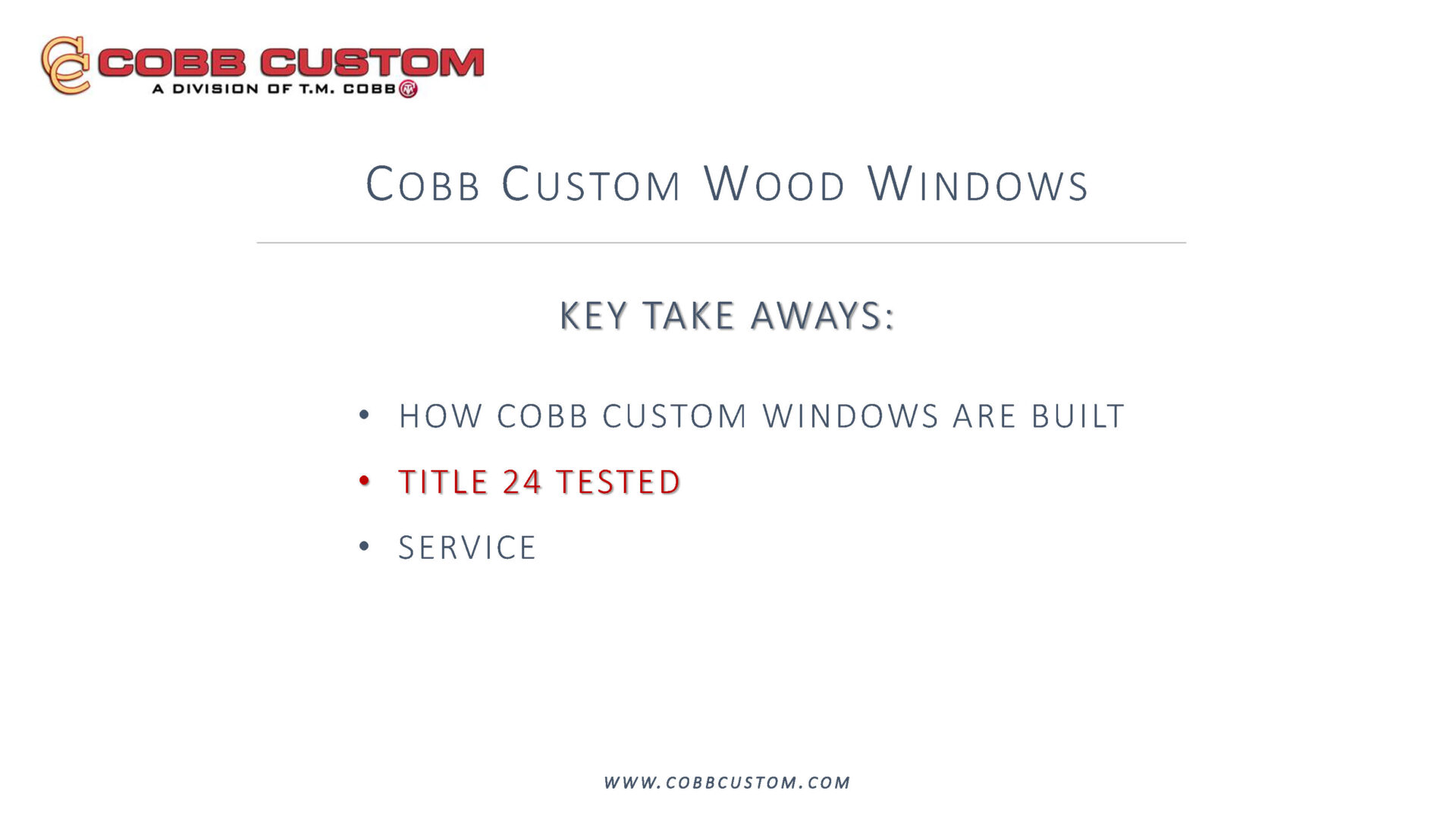

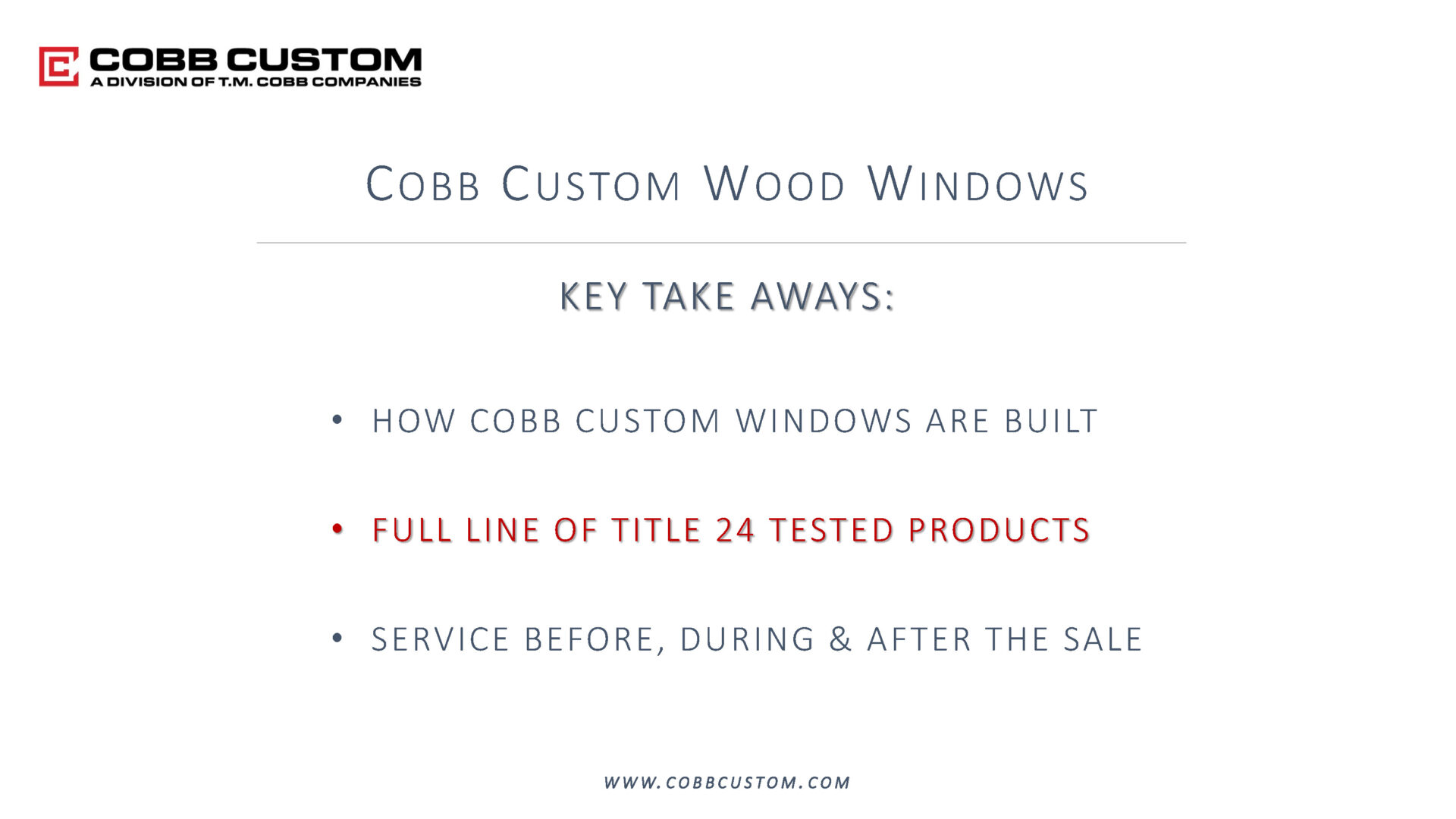

Cobb Custom Wood Windows slide listing key takeaways: how Cobb Custom Windows are built; Title 24 products; service before, during & after the sale; cobbcustom.com
Cobb Custom order form with logo, left red margin, and fields for customer details and options.

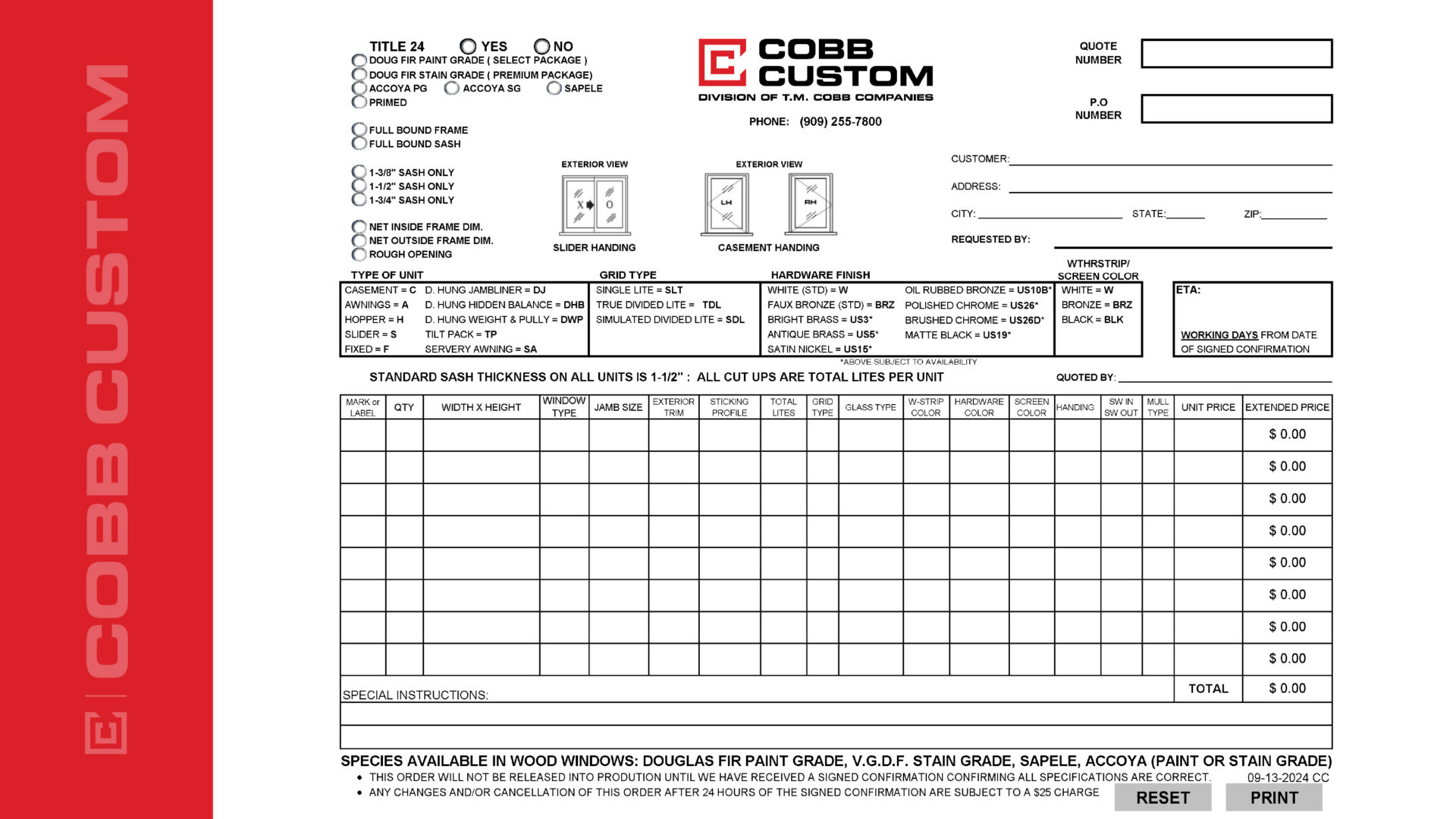

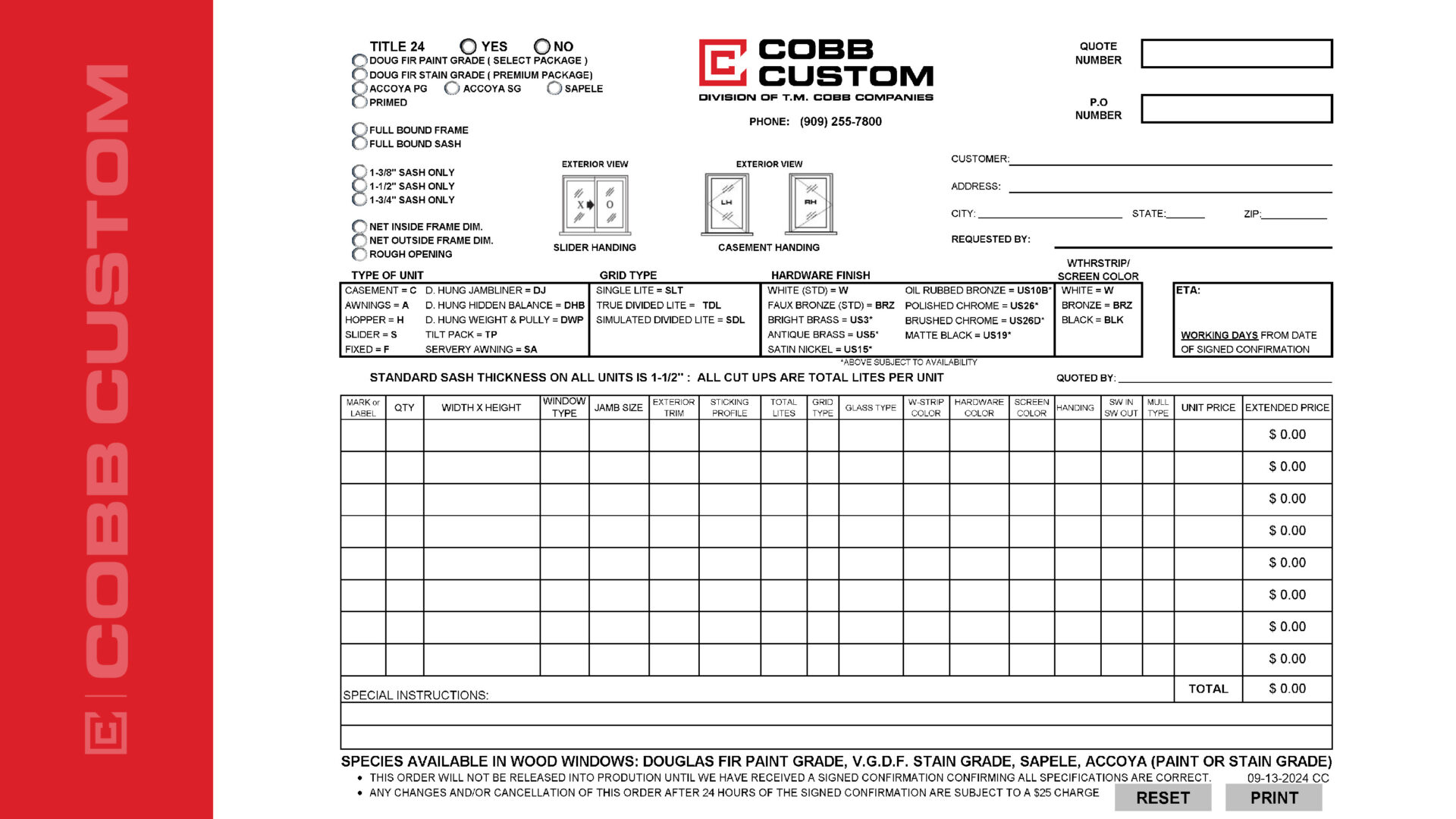

Cobb Custom order form for wood windows with option checklists, exterior view diagrams, and a customer/quote section, red branding on the left.
Download / Print Slides

Doors:

Cobb Custom Millwork Doors specs: a true millworks door with door shoe, solid wood astragal, 1 3/4-inch standard thickness, engineered pine core and veneer stiles.
Cobb Custom Millwork Doors specs: stile and rail face layout and sill options including flat and bumper oak sills, bronze aluminum ADA sills and Type T beveled oak sill, with sill cross-section diagrams.
Cobb Custom Millwork Doors jamb options: finger-joint primed default for paint grade, Douglas Fir veneer for stain grade, oak, matching species and a Cobbposite jamb.
Cobb Custom Millwork Doors (Title 24 tested): swinging inswing and outswing singles, pairs and sidelites, entry doors, custom interior doors and radius doors, with French, entry, panel and arched door photos.

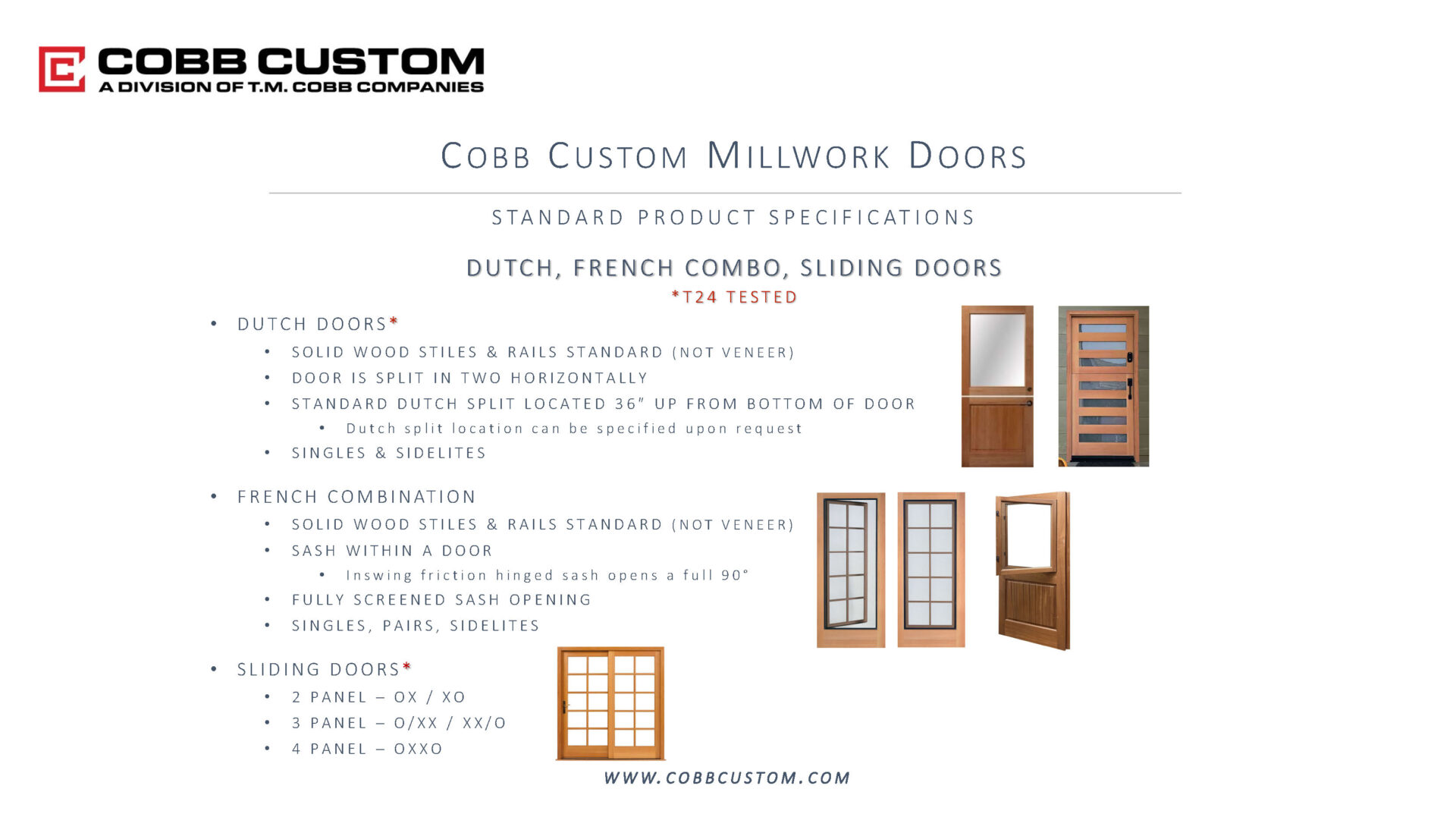

Cobb Custom Millwork Doors (Title 24 tested): Dutch doors split 36 inches up, French combination doors with a screened inswing sash that opens 90 degrees, and 2, 3 or 4 panel sliding doors, with door photos.
Download / Print Slides
